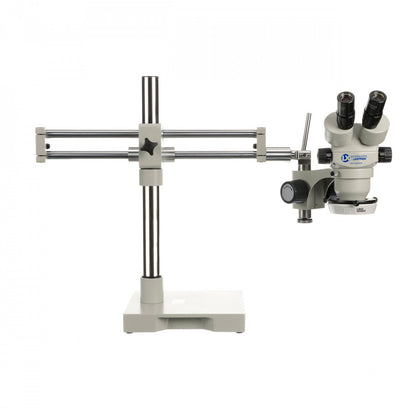

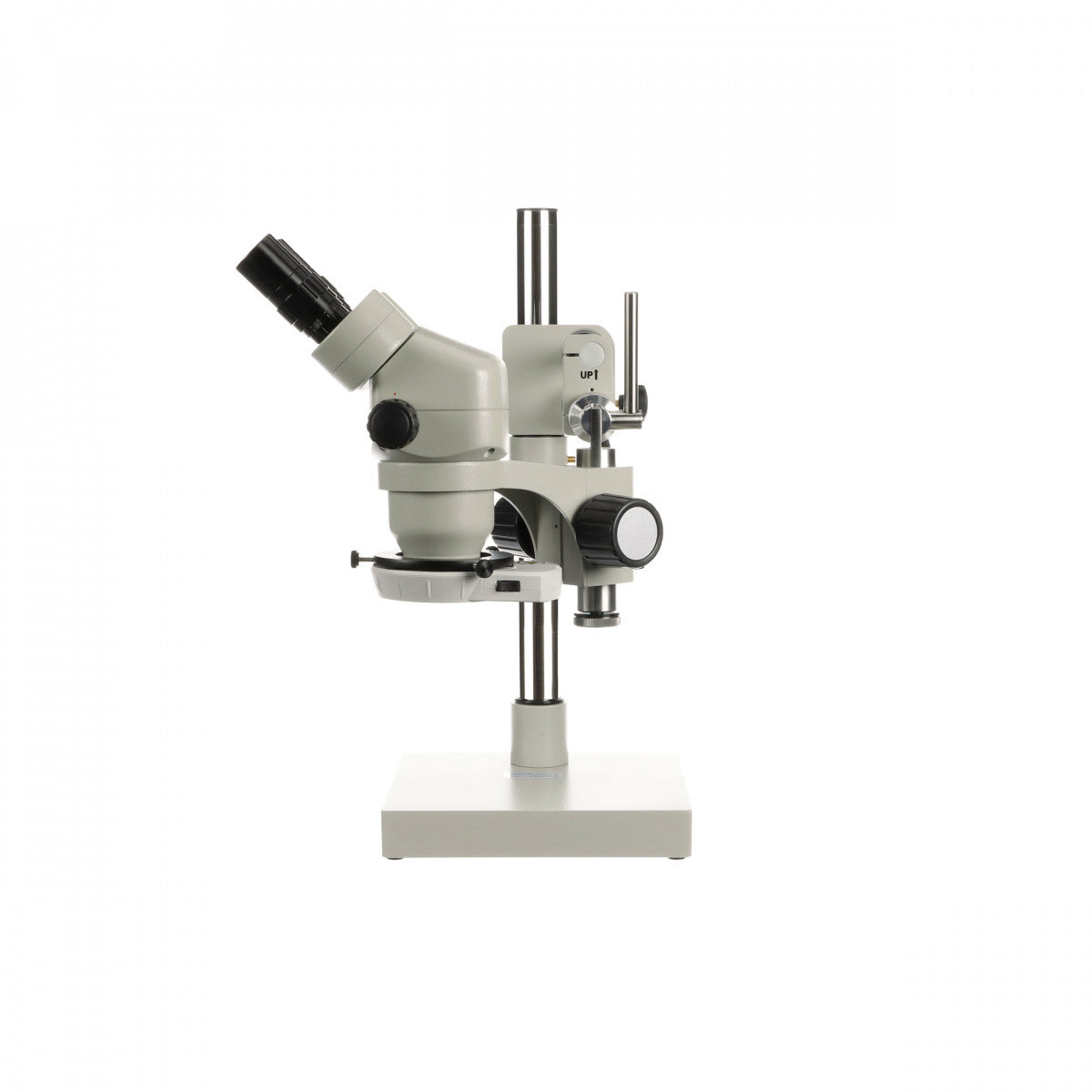

Unitron 273RB Binocular Stereo Zoom Microscope — LED Ring Light | VIP ESD Boom Stand | 7x–45x
The Unitron 273RB is a complete professional stereo zoom microscope system — combining 7x–45x continuous zoom magnification, an integrated LED-3000 ring light, a 0.5x auxiliary lens, and a VIP ESD boom stand into a single ESD-safe inspection solution. Engineered for electronics manufacturing, PCB inspection, semiconductor work, and precision assembly, the 273RB delivers shadow-free illumination, extended working distance, and ergonomic 45° binocular viewing — reducing eye strain and operator fatigue during extended inspection sessions.
Key Features & Benefits
- Integrated LED-3000 ring light — brilliant, shadow-free illumination with adjustable intensity enhances contrast and reveals fine details without glare or hot spots; reduces eye strain during extended viewing
- 0.5x auxiliary lens — extends working distance for greater clearance when working with taller assemblies, soldering tools, or probes under the microscope
- VIP ESD boom stand — ESD-safe articulating boom stand provides exceptional positioning flexibility and stable support; safe for inspecting sensitive electronic components without static discharge risk
- 7x–45x continuous zoom magnification — wide zoom range covers overview inspection through fine detail examination without changing objectives
- Ergonomic 45° binocular viewing angle — reduces neck flexion and upper back strain during extended use; promotes neutral head and neck posture for healthier long-session viewing
- ESD-safe throughout — stand, ring light, and accessories are ESD-safe for use in electronics manufacturing and semiconductor environments
- Diopter adjustment — individual eye focusing for operators with different vision in each eye
- Interpupillary distance adjustment (55–75mm) — accommodates a wide range of operators for shared workstation use
- Precision optical system — precision-ground lenses deliver sharp, clear, high-contrast images with excellent depth of field and color accuracy
- 5-year manufacturer warranty — backed by Unitron’s commitment to quality and long-term reliability
Who This Microscope Is For
The Unitron 273RB is the premium stereo zoom microscope system for electronics manufacturers, PCB assembly and inspection teams, semiconductor facilities, and precision manufacturing quality control labs that require ESD-safe optics, integrated illumination, and extended working distance in a single complete system. Also widely used in medical device inspection, jewelry inspection and repair, watch and instrument repair, research and development, and forensic examination.
Technical Specifications
- Model: 273RB
- SKU: 23780RB
- Magnification: 7x–45x continuous zoom
- Auxiliary Lens: 0.5x (included, extends working distance)
- Illumination: LED-3000 ring light with adjustable intensity
- Viewing Angle: 45° ergonomic binocular
- Interpupillary Distance: 55–75mm
- Stand Type: VIP ESD boom stand
- ESD-Safe: Yes — stand, ring light, and accessories
- Diopter Adjustment: Yes
- Warranty: 5 years (manufacturer)
- Price: $2,594.00
Frequently Asked Questions
What is the difference between the 273RB and the 273LS?
The 273RB is a complete system with an integrated LED-3000 ring light, 0.5x auxiliary lens, and VIP ESD boom stand — ideal for electronics inspection, PCB work, and any application requiring ESD safety, built-in illumination, and flexible positioning. The 273LS (lab stand) is a fixed benchtop configuration without integrated illumination, suited for stationary laboratory work where external lighting is available. Both share the same 7x–45x optical system.
What does the 0.5x auxiliary lens do?
The 0.5x auxiliary lens reduces the effective magnification range while significantly extending the working distance — the space between the objective lens and the specimen. This is critical for electronics assembly and PCB rework where you need clearance for soldering irons, probes, tweezers, and other tools under the microscope without obstruction.
What is a VIP ESD boom stand?
The VIP ESD boom stand is an ESD-safe (electrostatic discharge safe) articulating boom stand designed for use in electronics manufacturing and semiconductor environments. ESD safety means the stand is grounded and will not generate or accumulate static charges that could damage sensitive electronic components during inspection or assembly.
Is the 273RB fully ESD-safe?
Yes — the 273RB system including the VIP ESD boom stand, LED-3000 ring light, and accessories is ESD-safe, making it suitable for inspecting sensitive electronic components, PCBs, and semiconductor assemblies without risk of electrostatic discharge damage.
What magnification range does the 273RB cover?
The 273RB provides 7x–45x continuous zoom magnification (without the 0.5x auxiliary lens). With the 0.5x auxiliary lens installed, the effective magnification range adjusts while working distance increases significantly for tool clearance during assembly work.
How does the LED-3000 ring light improve inspection quality?
The LED-3000 ring light provides shadow-free, even illumination that eliminates the hot spots and shadows common with directional lighting. Adjustable intensity allows optimization for different specimens — from highly reflective PCB surfaces to translucent or matte materials. Consistent, even lighting reduces eye strain and improves contrast for detecting fine defects during extended inspection sessions.
How does the 45° viewing angle reduce ergonomic strain?
The 273RB’s 45° binocular viewing angle allows operators to maintain a more neutral head and neck posture, substantially reducing musculoskeletal strain and fatigue during long electronics inspection or assembly shifts compared to near-vertical viewing angles.
Can Ask Ergo Works help configure a complete ergonomic electronics inspection workstation?
Absolutely. Our certified ergonomic specialists have 30+ years of experience optimizing microscope workstations for electronics manufacturers, PCB assembly teams, semiconductor facilities, and quality control labs. We offer ergonomic consulting services covering microscope selection, stand configuration, ESD safety, seating, forearm support, and full workstation configuration.
Why Ask Ergo Works
With 30+ years of ergonomic and professional workstation expertise, Ask Ergo Works is the trusted source for precision optical instruments and ergonomic solutions for electronics manufacturing, laboratory, and inspection environments.
- Certified ergonomic specialists — expert guidance on ESD-safe microscope selection, positioning, and full workstation ergonomics for electronics and manufacturing environments
- Trusted by electronics manufacturers & quality control labs — PCB assembly, semiconductor, medical devices, aerospace, and precision manufacturing
- Bay Area roots, nationwide reach — in-person assessments in the Bay Area; virtual consultations available nationwide
- Enterprise procurement support — volume pricing, net terms, and procurement documentation available for facility-wide deployments
Need help configuring a complete ESD-safe ergonomic inspection workstation? Our ergonomic consulting services cover microscope selection, stand configuration, ESD safety, seating, forearm support, and lighting.
Complete Your Ergonomic Microscope Workstation
- Unitron 273LS — Lab Stand — same 7x–45x optics on a fixed lab stand for stationary benchtop inspection
- Unitron 230BB — Ball Bearing Boom Stand — 7x–30x with premium ball bearing boom stand
- Unitron 230 — Single Boom Stand — 7x–30x economical option
- Wedge-Ease Forearm Support — ergonomic forearm cushion for extended microscope work
- Ergonomic Electronics Inspection Workstation Assessment — full ESD-safe workstation evaluation for electronics manufacturing environments
