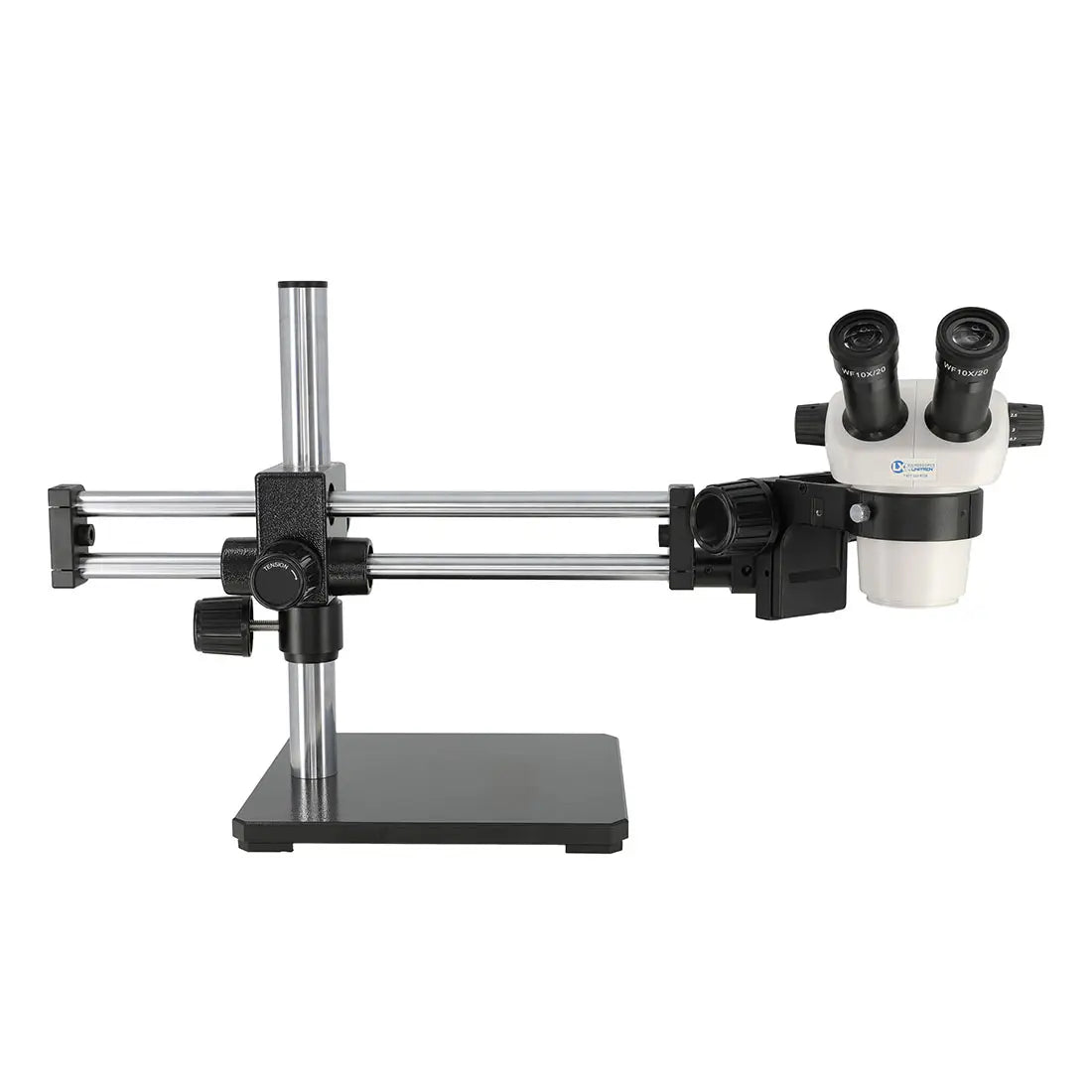

Unitron 230BB Binocular Stereo Zoom Microscope — Ball Bearing Boom Stand | 7x–30x

The Unitron 230BB is a professional binocular stereo zoom microscope mounted on a premium ball bearing boom stand — engineered for precision inspection, assembly, and quality control work that demands both optical excellence and ergonomic comfort. With 7x–30x continuous zoom magnification, a 97mm working distance, and an ergonomic 45° binocular viewing angle, the 230BB reduces neck and back strain during extended microscope sessions while delivering sharp, distortion-free imaging across a wide range of professional applications.

Key Features & Benefits

• Ball bearing boom stand — premium ball bearing mechanism provides effortless, precise positioning with smooth movement and stable locking at any position
• 7x–30x continuous zoom magnification — seamless zoom range covers detailed inspection, fine assembly, quality control, and general examination without changing objectives
• 97mm working distance — generous clearance allows comfortable manipulation of parts, tools, probes, and instruments under the microscope without obstruction
• Ergonomic 45° binocular viewing angle — reduces neck flexion and upper back strain during extended use; promotes neutral head and neck posture
• Diopter adjustment — individual eye focusing for operators with different vision in each eye
• Interpupillary distance adjustment (55–75mm) — accommodates a wide range of operators for shared workstation use
• Precision optical system — precision-ground lenses deliver sharp, clear, distortion-free images with excellent depth of field
• 5-year manufacturer warranty — backed by Unitron’s commitment to quality and long-term reliability

Who This Microscope Is For

The Unitron 230BB is the preferred stereo zoom microscope for professionals who require both optical precision and ergonomic comfort during extended inspection and assembly work. Widely used in electronics manufacturing and PCB inspection, quality control laboratories, precision assembly and manufacturing, jewelry inspection and repair, watch and clock repair, medical device inspection, research and educational laboratories, and forensic analysis.

Technical Specifications

• Model: 230BB
• SKU: 20714BB
• Magnification: 7x–30x continuous zoom
• Working Distance: 97mm
• Viewing Angle: 45° ergonomic binocular
• Interpupillary Distance: 55–75mm
• Stand Type: Ball bearing boom stand
• Diopter Adjustment: Yes
• Warranty: 5 years (manufacturer)
• Price: $1,321.00

Frequently Asked Questions

What is the difference between the 230BB and the 230 single boom stand model?

The 230BB features a ball bearing boom stand that provides significantly smoother, more precise positioning with effortless movement and stable locking — ideal for high-frequency repositioning in production and inspection environments. The 230 (single boom stand) is a more economical option suited for lower-frequency use. Both share the same 7x–30x optical system and 45° binocular head.

What magnification range does the 230BB cover?

The 230BB provides 7x–30x continuous zoom magnification — covering general inspection at lower magnifications and fine detail work at higher magnifications, all without changing objectives.

What is the working distance and why does it matter?

The 230BB has a 97mm working distance — the space between the objective lens and the specimen. This generous clearance allows comfortable manipulation of parts, tools, probes, and soldering irons without obstruction, making it well-suited for electronics assembly, PCB rework, and precision manufacturing.

Is the 230BB suitable for electronics inspection and PCB rework?

Yes — the 230BB is widely used in electronics manufacturing and PCB inspection. The 7x–30x zoom, 97mm working distance, and ball bearing boom stand make it ideal for component inspection, PCB rework, and soldering tasks.

How does the 45° viewing angle reduce ergonomic strain?

The 230BB’s 45° binocular viewing angle allows operators to maintain a more neutral head and neck posture, substantially reducing musculoskeletal strain and fatigue during long inspection or assembly shifts compared to near-vertical viewing angles.

Can multiple operators use the same 230BB?

Yes — the 230BB includes interpupillary distance adjustment (55–75mm) and diopter adjustment for individual eye focusing, making it easy to accommodate multiple operators at a shared workstation.

What accessories are compatible with the Unitron 230BB?

The 230BB is compatible with Unitron auxiliary lenses, ring lights, and other accessories. Ask Ergo Works also carries ergonomic forearm supports and microscope rests to further reduce strain. Contact our specialists for a complete workstation recommendation.

Can Ask Ergo Works help set up a complete ergonomic microscope workstation?

Absolutely. Our certified ergonomic specialists have 30+ years of experience optimizing microscope workstations for electronics manufacturers, quality control labs, medical device companies, and precision industries. We offer ergonomic consulting services covering microscope selection, positioning, seating, forearm support, and full workstation configuration.

Why Ask Ergo Works

With 30+ years of ergonomic and professional workstation expertise, Ask Ergo Works is the trusted source for precision optical instruments and ergonomic solutions for laboratory, manufacturing, and inspection environments.

• Certified ergonomic specialists — expert guidance on microscope selection, positioning, and full workstation ergonomics
• Trusted by manufacturers, labs & quality control teams — electronics, medical devices, aerospace, jewelry, and precision manufacturing
• Bay Area roots, nationwide reach — in-person assessments in the Bay Area; virtual consultations available nationwide
• Enterprise procurement support — volume pricing, net terms, and procurement documentation available

Need help configuring a complete ergonomic inspection workstation? Our ergonomic consulting services cover microscope selection, stand configuration, seating, forearm support, and lighting.

Complete Your Ergonomic Microscope Workstation

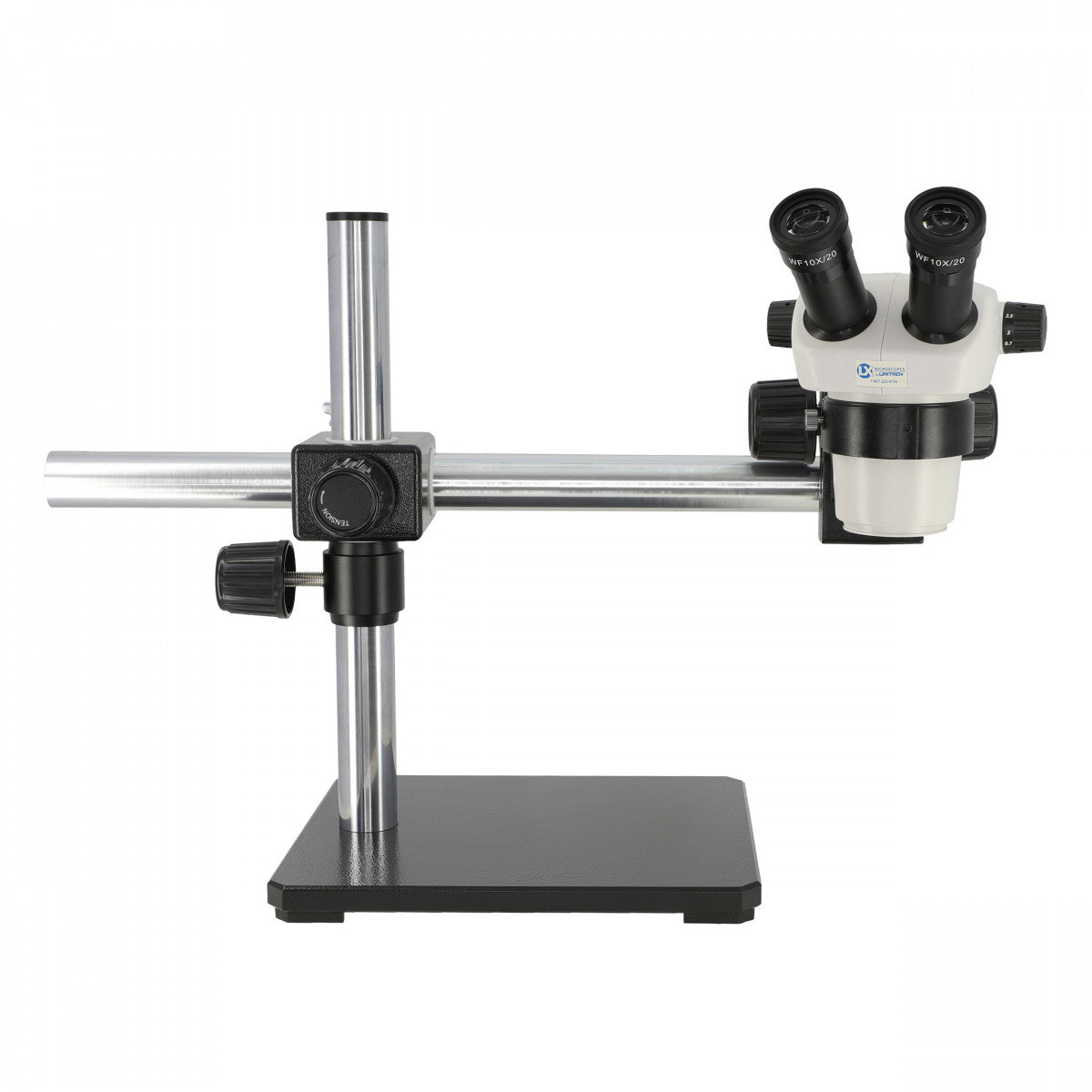

• Unitron 230 Single Boom Stand — same 7x–30x optical system; more economical option for lower-frequency use
