NEW PRODUCT - ETA End of May 2026!

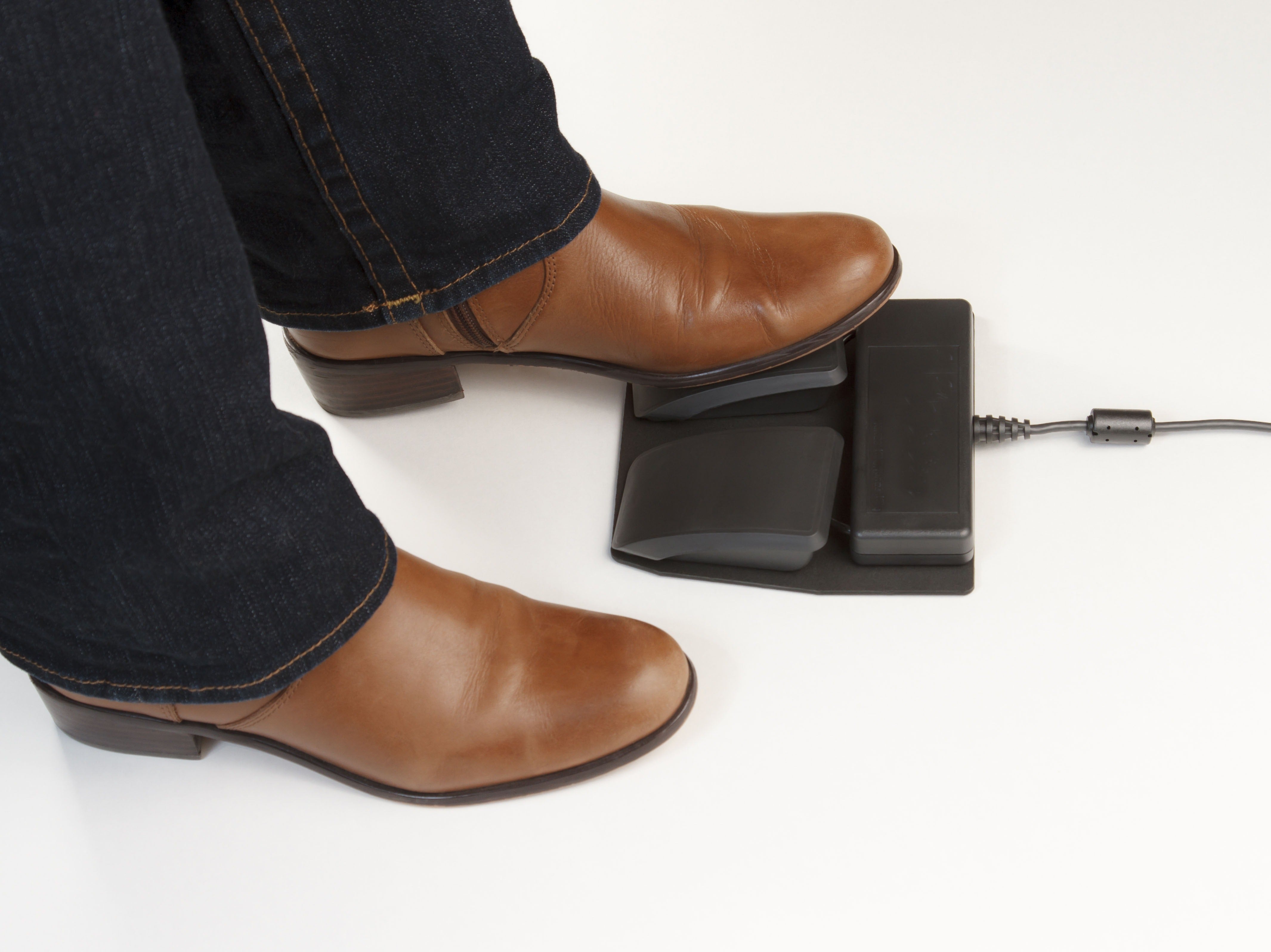

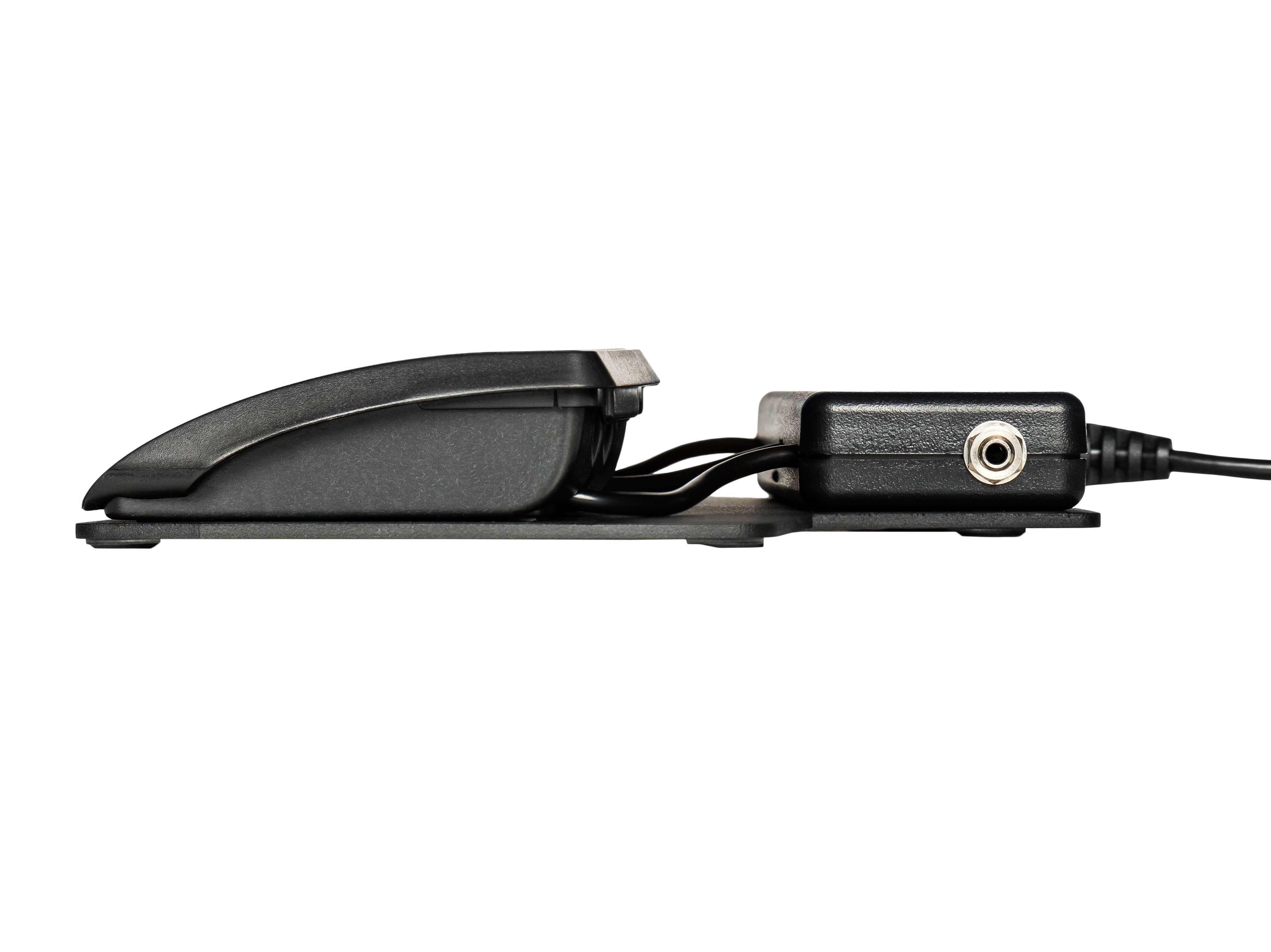

Kinesis JSB Dual USB Foot Pedal

Imagine completing your most repetitive click-heavy tasks without ever lifting your hands from the keyboard. The Kinesis JSB Dual USB Foot Pedal shifts joystick button actions from your hands to your feet — delivering hands-free control that reduces repetitive strain and keeps your workflow moving. Whether you're transcribing medical records, operating dental equipment, running industrial software, or gaming, the JSB Dual Pedal is a precision ergonomic tool built for demanding, high-use environments.

Plug it in and go — no drivers, no software, no configuration required. The JSB uses a generic USB HID driver recognized natively by Windows, so it's ready to work the moment it's connected.

Key Features

• Hands-Free Joystick Button Control – Assigns joystick button 1 (left pedal) and button 2 (right pedal) to your feet, freeing your hands for other tasks
• Plug-and-Play USB – Generic USB HID driver; no special software or installation required
• Two Front-Hinged Low-Profile Pedals – Ergonomic design minimizes foot fatigue during extended use
• Heavy Steel Base – Prevents sliding and stays firmly in place on any floor surface
• Adjustable Activation Force – Customize pedal resistance (approx. 4–6 lb) to match your preference
• Durable Construction – Glass-filled ABS and POM materials; tested to over 1,000,000 switch cycles
• Extra-Long Cable – 9 ft 1 in (2.8 m) USB Type-A cable for flexible workstation placement
• Optional Third Input (FP22AJ-JSB) – Mini-phono jack allows connection of a third Kinesis pedal or hand trigger for button 3
• 2-Year Warranty – Kinesis parts and labor coverage
• Compliance – FCC Class B, CE, UL recognized component, RoHS compliant

Choose Your Model

• FP22A-JSB – Without Jack ($189): Dual pedal joystick button 1 & 2 output. Standard configuration for most use cases.
• FP22AJ-JSB – With Jack ($199): Dual pedal plus mini-phono jack for connecting a third pedal or hand trigger (button 3 output).

Ideal Use Cases

• Medical & Dental – Hands-free control for EMR/EHR software, imaging systems, and dental operatory equipment
• Industrial & Manufacturing – Foot-operated input for machinery control and specialty software
• Accessibility – Alternative input device for users with limited hand mobility
• Transcription & Data Entry – Reduce hand strain during high-volume typing and transcription workflows
• PC Gaming – Assign game actions to foot pedals for a competitive edge
• Legal & Administrative – Hands-free control for dictation and document management software

Specifications

• Brand: Kinesis
• Models: FP22A-JSB (without jack), FP22AJ-JSB (with jack)
• Connection: USB Type-A
• Cable Length: 9 ft 1 in / 2.8 m
• System Requirement: USB 1.1 port or newer; Windows
• Driver: Generic USB HID (plug-and-play)
• Pedal Output: FP22A-JSB: buttons 1 & 2 | FP22AJ-JSB: buttons 1, 2 & 3 (via jack)
• Base Dimensions: 6.5 in W × 6.0 in D
• Pedal Dimensions: 3.7 in L × 1.25 in H × 2.7 in W
• Pedal Travel: ~0.150 in / 3.8 mm
• Actuation Force: Adjustable, approx. 4–6 lb
• Switch Life: 1,000,000+ cycles
• Color: Black
• Shipping Weight: 3 lb
• Warranty: 2 years, parts and labor
• Compliance: FCC Class B, CE, UL recognized component, RoHS compliant

Frequently Asked Questions

Does the Kinesis JSB foot pedal work on Mac?
The JSB is designed and configured for Windows. Mac compatibility is not officially supported — confirm with Kinesis for your specific use case.

What is the difference between FP22A-JSB and FP22AJ-JSB?
The FP22A-JSB outputs joystick buttons 1 and 2 from the two pedals. The FP22AJ-JSB adds a mini-phono jack so you can connect a third Kinesis pedal or hand trigger for button 3 output.

Do I need to install drivers?
No. The Kinesis JSB uses a generic USB HID driver built into Windows — just plug it in and it works immediately.

Can I use this for medical or dental software?
Yes. The JSB is widely used in medical transcription, EMR/EHR navigation, dental operatory control, and other specialty clinical software environments.
